PRODUCT

  • Double eccentric shaft structure
  • High leakage class under 0.1%
  • Special design, reducing wear of the seat, makes a long life time
  • The blade's wiping action prevents the sludge from stacking inside the damper
  • The special structure reduces the damper's torque by reducing the area of Packing's contact as it closes.
  • In part of the full-close action, the blade, changing its motion rotactional to straight, can make push the blade into the landing bar efficiently

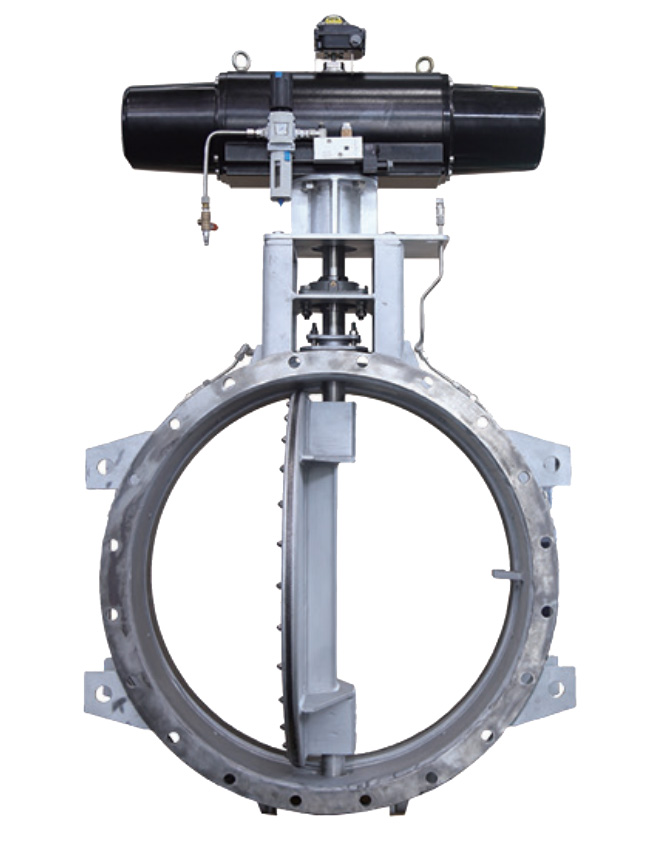

Model VSC-DE
Type Double Eccentric Damper
Applicable Fluids Air, Gas
Temp. Range 0 ~ 500℃
Design Pressure 0.1 bar
Size 200 ~ 1500mm
Material Stainless Steel, Carbon Steel
Leakage Rate 0.1% @Flow Rate
Actuator Electro-Hydraulic Actuator, Pneumatic Actuator, Motor Actuator
