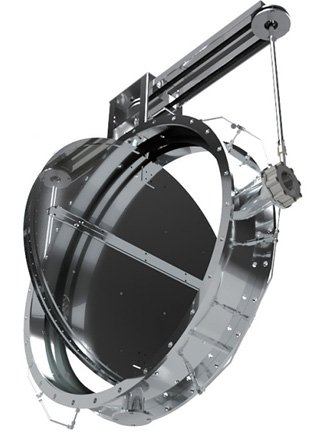

PRODUCT

  • 100% tight with air sealing
  • Simultaneous operation of sealing air valve and damper via link
  • Blowing soot by using high-pressure air
Model VSD
Type Air Sealing Damper
Applicable Fluids Air, Gas
Temp. Range 0 ~ 500℃
Design Pressure 0.1 bar
Size 200 ~ 3000mm
Material Stainless Steel, Cast Steel
Leakage
  • Without Sealing Air - Less than 1% @Flow rate (Metal to Metal)
  • Without Sealing Air – Less than 0.5% @Flow rate (Metal to Gasket)
  • Sealing Air Condition – Zero Leakage
Actuator
  • Motor Actuator
  • Electro-Hydraulic Actuator (Standard)
  • Pneumatic Actuator
Summary
Sealing Air Valve Link It is safe because there is no moving parts like external link type of other manufacturers
Soot Blowing Nozzle High pressure air injection for soot removal
Sealing Air Valve Eccentric Type butterfly valve with metal seat for high temperature
Tandem Damper Make Air-Curtain by tandem damper structure
Leaf Seal Hastelloy material that can withstand high temperature sulfuric acid
Inspection Hole Hole for inspection of damper inside with industrial endoscope
Damper Body Stainless steel material
Role

Sealing Air System for “ZERO” Leak

  • Damper with sealing air injection between the double blades attains a 100% tighten.
  • The seal air pressure needs to be higher than the pressure of the flue gas.
Damper Open
  • Exhaust Gas Damper with Seal Air Fan (Opened into the sealing Air)

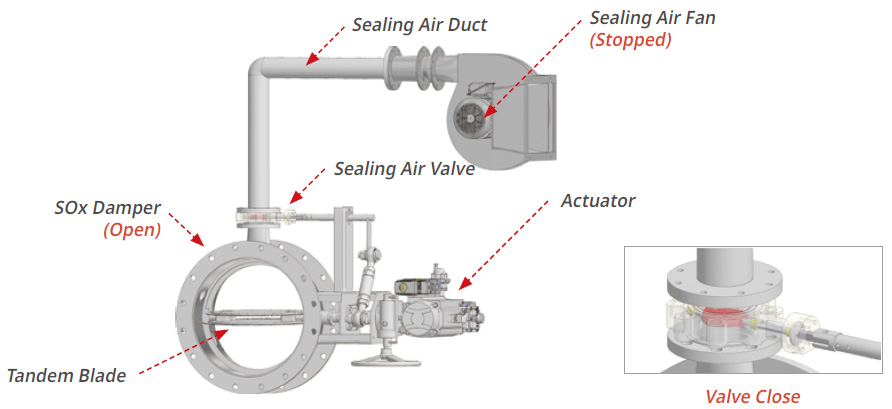

  • When Damper is opened, sealing air valve is closed, losing the air curtain
Damper Close
  • Exhaust Gas Damper with Seal Air Fan (Closed into the sealing air)

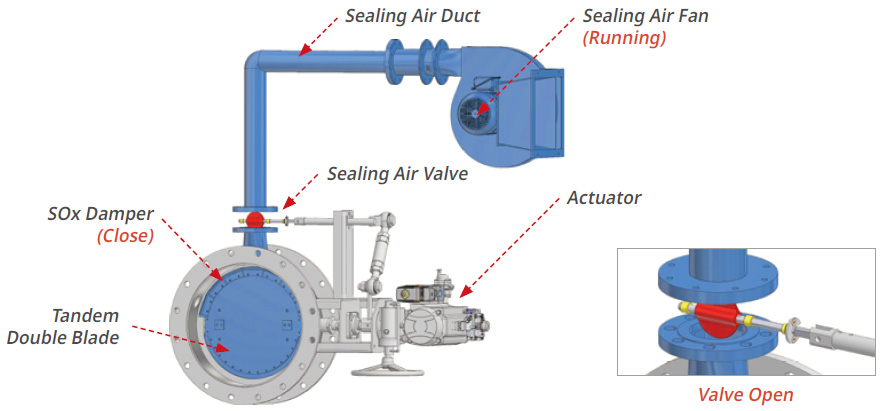

  • When damper is closed, sealing air valve is opened, making the air curtain

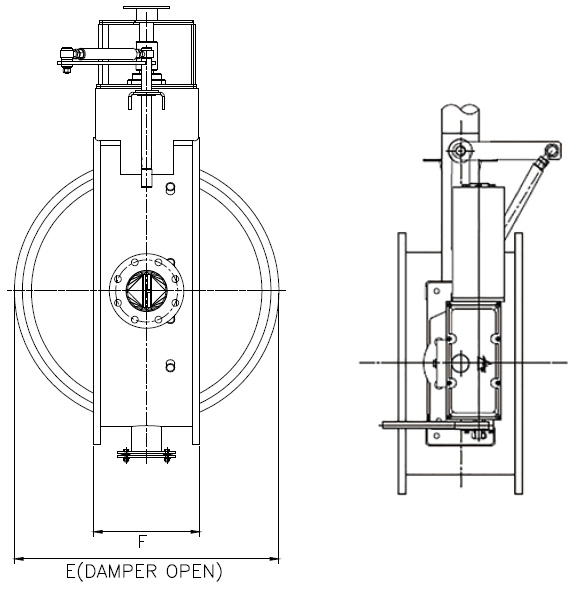

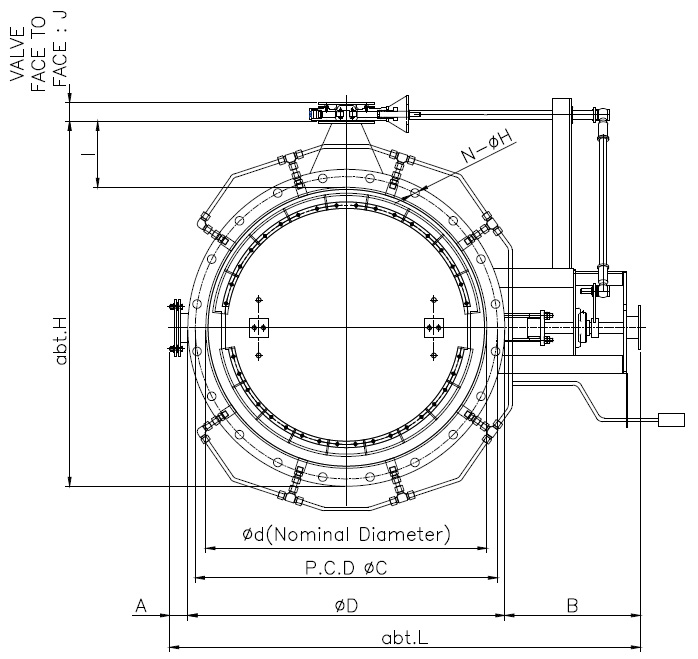

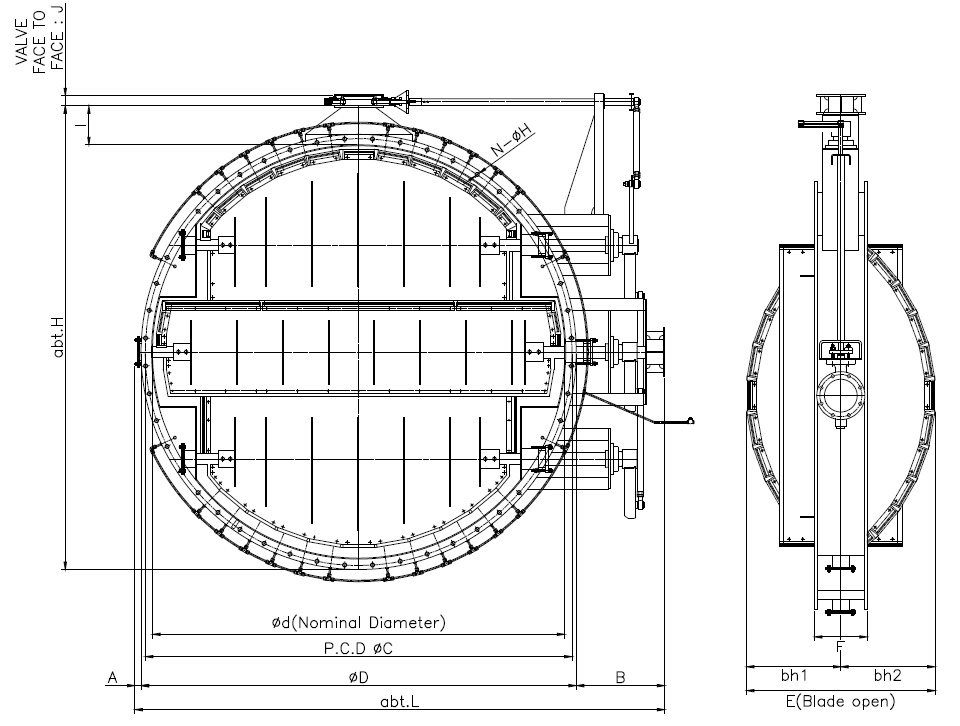

Air Sealing Damper Dimension Table

Scroll left or right to see the content.

No Size ￠D ￠C L A B max. H E max. bh1 bh2 F I N ￠H Air Nozzle SAV
1 2500A 2650 2595 3270 40 580 2837 1048 528 528 350 256 48 27 24 5K-200A
2 2600A 2750 2695 3370 40 580 2937 1156 578 578 350 256 48 27 28 5K-200A
3 2700A 2850 2795 3470 40 580 3037 1256 628 628 350 256 48 27 28 5K-200A
4 2800A 2950 2895 3570 40 580 3137 1356 678 678 350 256 52 27 28 5K-200A
5 2900A 3050 2995 3670 40 580 3237 1456 728 728 350 256 52 27 28 5K-200A
6 3000A 3150 3095 3770 40 580 3337 1556 778 778 350 256 52 27 28 5K-200A

Scroll left or right to see the content.

No. Size ∅D ∅C L A B max. H E max. F I N ∅H Air Nozzle SAV
1 200A 320 280 640 50 270 418 180 260 149 8 23 6 5K-50A
2 250A 385 345 700 45 270 447 230 260 149 12 23 6 5K-50A
3 300A 430 390 745 45 270 525 280 260 149 12 23 6 5K-50A
4 350A 480 435 800 40 280 569 330 260 149 12 25 6 5K-50A
5 400A 540 495 880 40 300 624 370 260 149 16 25 6 5K-50A
6 450A 605 555 945 40 300 685 420 260 149 16 25 6 5K-50A
7 500A 655 605 985 30 300 730 470 260 147 16 25 6 5K-80A
8 550A 660 620 1035 55 320 758 520 260 147 16 23 8 5K-80A
9 600A 710 670 1085 55 320 809 570 260 147 16 23 8 5K-80A
10 650A 760 720 1205 55 390 889 620 260 177 16 23 8 5K-80A
11 700A 815 775 1255 50 390 942 670 260 177 16 23 8 5K-80A
12 750A 865 825 1305 50 390 993 720 300 177 20 23 8 5K-80A
13 800A 915 875 1395 50 430 1043 770 300 177 20 23 8 5K-80A
14 850A 965 925 1445 50 430 1094 820 300 177 20 23 8 5K-80A
15 900A 1025 980 1505 50 430 1149 870 300 177 20 25 8 5K-80A
16 950A 1075 1030 1555 50 430 1198 920 300 177 20 25 8 5K-80A
17 1000A 1125 1080 1605 50 430 1250 970 300 177 20 25 8 5K-80A
18 1050A 1175 1130 1695 50 470 1318 1020 300 197 24 25 12 5K-100A
19 1100A 1225 1180 1745 50 470 1371 1070 300 197 24 25 12 5K-100A
20 1150A 1275 1230 1795 50 470 1418 1120 300 197 24 25 12 5K-100A
21 1200A 1325 1280 1845 50 470 1472 1170 300 197 24 25 12 5K-100A
22 1250A 1375 1330 1925 50 500 1518 1220 300 197 28 25 12 5K-100A
23 1300A 1425 1380 1975 50 500 1568 1270 300 197 28 25 12 5K-100A
24 1350A 1475 1430 2025 50 500 1623 1320 300 197 28 25 12 5K-100A
25 1400A 1525 1480 2075 50 500 1668 1370 300 197 28 25 12 5K-100A
26 1450A 1595 1540 2200 55 550 1728 1420 300 197 28 27 12 5K-100A
27 1500A 1645 1590 2255 60 550 1784 1470 300 197 28 27 12 5K-100A
28 1600A 1745 1690 2350 55 550 1878 1570 300 197 28 27 16 5K-100A
29 1700A 1845 1790 2450 55 550 1978 1670 300 197 28 27 16 5K-100A
30 1800A 1950 1895 2555 55 550 2111 1770 350 227 32 27 16 5K-150A
31 1900A 2050 1995 2670 50 570 2211 1870 350 227 32 27 16 5K-150A
32 2000A 2150 2095 2770 50 570 2311 1970 350 227 36 27 16 5K-150A
33 2100A 2250 2195 3000 50 700 2413 2050 350 227 36 27 20 5K-150A
34 2200A 2350 2295 3100 50 700 2513 2150 350 227 40 27 20 5K-150A
35 2300A 2450 2395 3200 50 700 2613 2250 350 227 40 27 20 5K-150A
36 2400A 2550 2495 3300 50 700 2713 2350 350 227 40 27 20 5K-150A

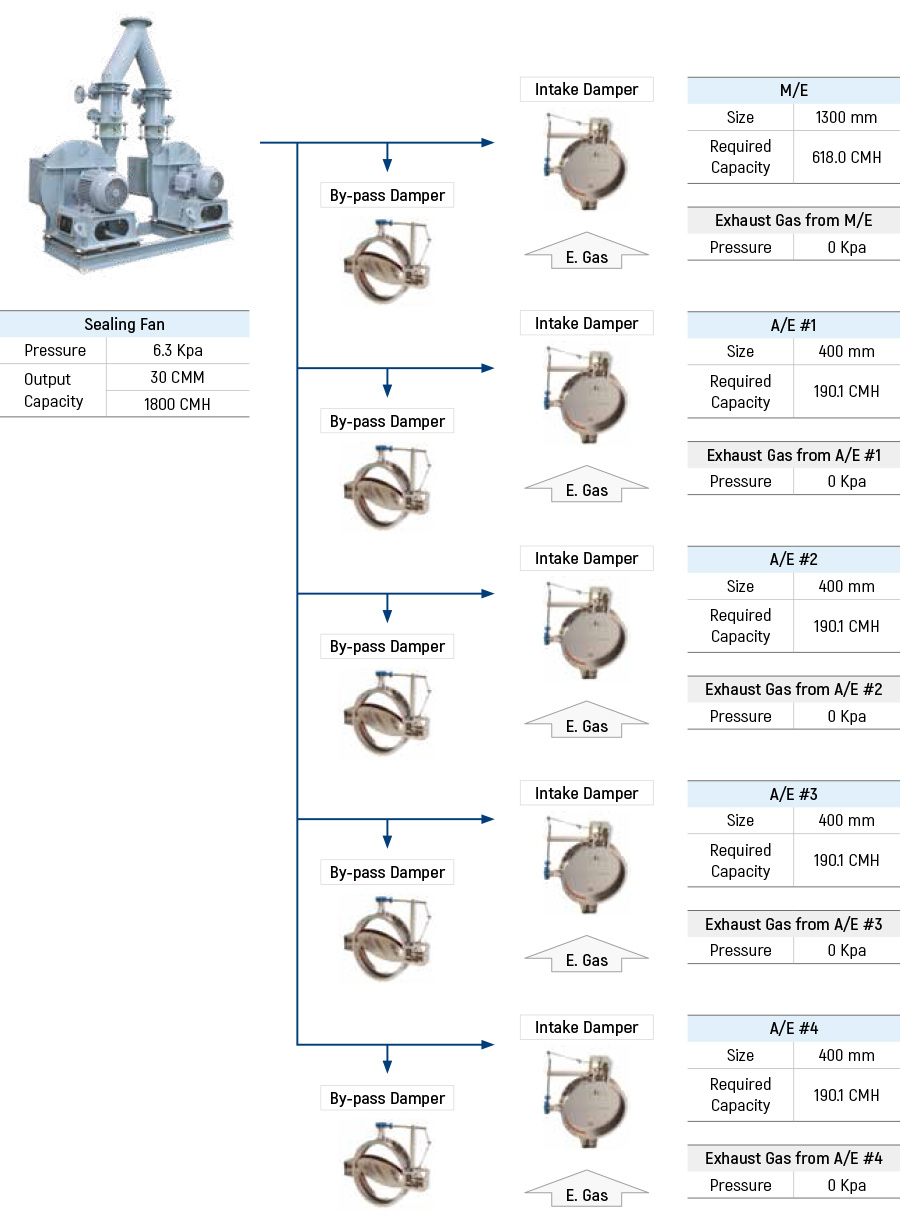

Air Consumption Calculation

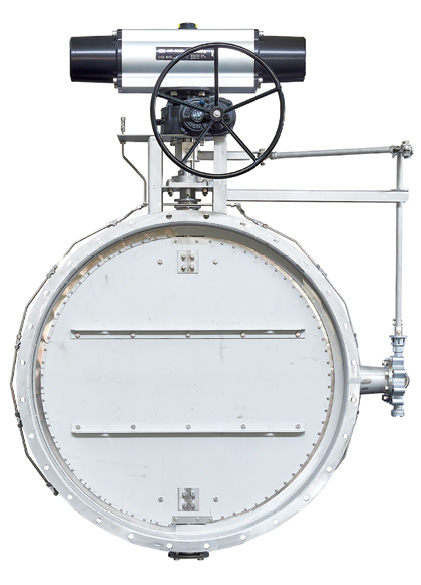

Damper Picture

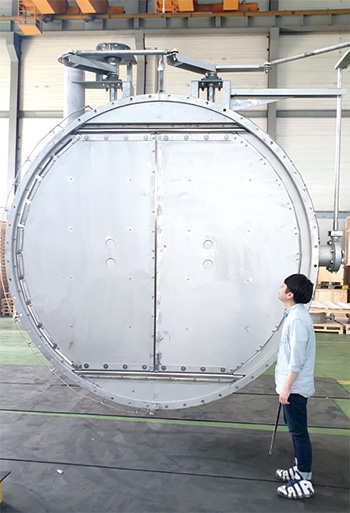

2-Blade Damper (3000A)

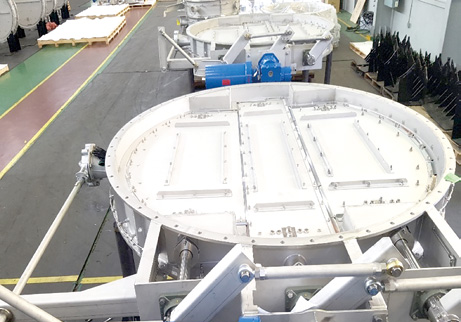

3-Blade Damper(2800A)

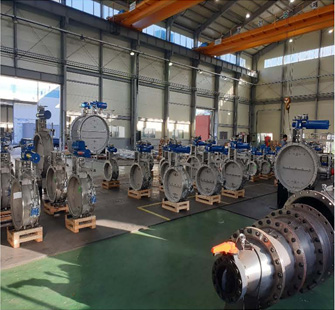

Factory view

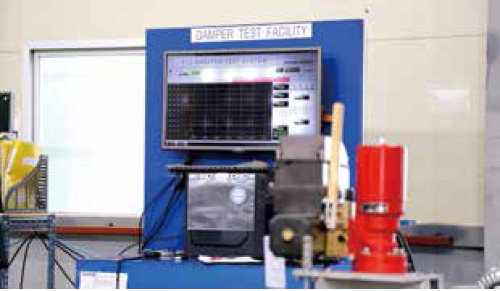

Test facility

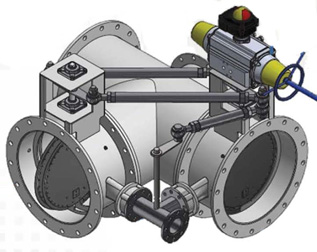

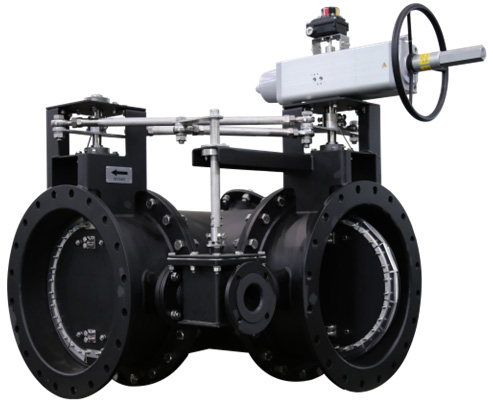

Model VSD3
Type 3-way Air Sealing Damper
Applicable Fluids Air, Gas
Temp. Range 0 ~ 500℃
Design Pressure 0.1 bar
Size 200 ~ 2000mm
Material Stainless Steel, S355JR
Leakage Rate
  • without Sealing Air - Less than 1% @Flow Rate (Metal to Metal)
  • without Sealing Air - Less than 0.5% @Flow Rate (Metal to Gasket)
  • Sealing Air Condition - Zero Leakage
Actuator
  • Electro-Hydraulic Actuator, Pneumatic Actuator, Motor Actuator
