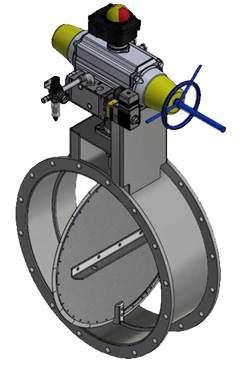

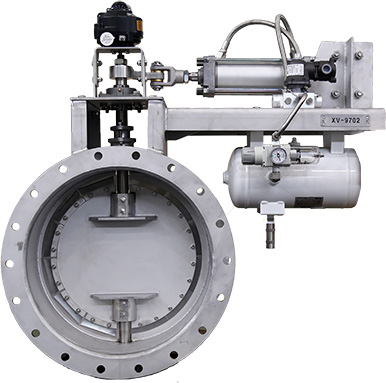

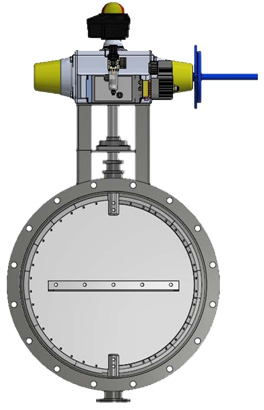

VDS A SERIES

  • The Standard damper that is used in power plants, steelworks, and chemical plants
  • Applicable at a Ship SCR(Selective Catalytic Reduction) System.
Model VDS A SERIES
Type Single Blade Damper
Applicable Fluids Air, Gas
Temp. ange 0 ~ 500 ℃
Design Pressure 0.1bar
Size 200 ~ 3000mm
Materical Stainless Steel, Carbon Steel
Leakage Rate Less than 1% @Flow Rate
Actuator Electro-Hydraulic Actuator, Pneumatic Actuator, Motor Actuator

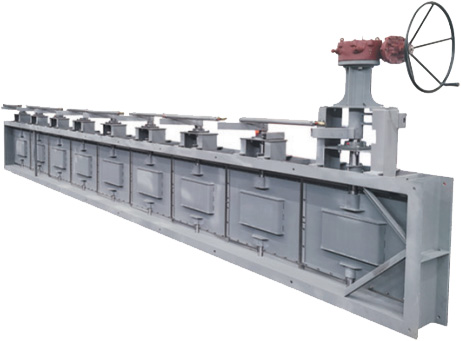

VDS B SERIES

  • Control multiple blades with one actuator
  • Provide its size and quantity of blades as the buyer requires
  • Design the blade as the Parallel type or the Opposed type according to the gas flow characteristics
  • The special design takes account of the stacking sludge and thermal expansion applied to the botton shaft parts
  • The bolting assembly method makes it easy to maintain, repair, and manage the multiple blades
Model VDS B SERIES
Type Louver Damper
Applicable Fluids Air, Gas
Temp. Range 0 ~ 500 ℃
Design Pressure 0.1bar
Size Max. 15000 mm (Longer Side)
Materical Stainless Steel, Carbon Steel
Leakage Rate Less than 1% @Flow Rate
Actuator Electro-Hydraulic Actuator, Pneumatic Actuator, Motor Actuator
