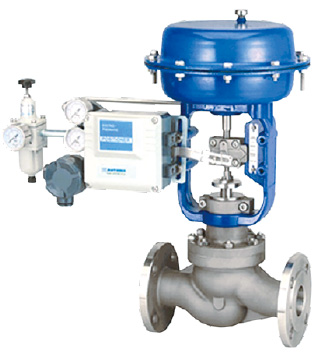

VUP SERIES : 2-WAY PLUG TYPE CONTROL VALVE

  • The valve provides easy maintenance
  • All trim parts can be removed from the top of the valve
  • Lower stem friction for increased stability
  • Unbalance trim structure
  • Lock nut between bonnet and actuator can make quick disassembly
Model VUP
Valve Type 2-way Plug Control (Unbalanced Type)
Applicable Fluids Water, Oil, Steam, Gas
Temp. Range -5 ~ 200℃, Option -196 ~ 400℃
Design Pressure Max. 120bar
Size 15~100mm (½" ~ 4")
Flanges JIS, ANSI, DIN, ISO
Material - Body - Ductile Iron, Cast Steel, Cast Bronze, Stainless Steel
- Special Material on request
Flow Characteristics Linear, EQ%, Quick Opening, Low Noise
Actuator Pneumatic Diaphragm, Motor Actuator
STANDARD
SOFT SEAT
MICROFLOW
ANTI-CAVITATION
Dimensiom

Scroll left or right to see the content.

Size mm(inch) L ￠D H Weight (kg) Rated Cv
150# 300# 600# Without Handle With Handle
25 (1") 184 197 210 220 393 544 20 14
32 (1 1/4") 222 235 251 250 475 691 46 28
40 (1 1/2") 222 235 251 250 475 691 48 40
50 (1 2") 254 267 286 290 490 740 55 50
65 (2 1/2") 276 292 311 370 633 894 82 90

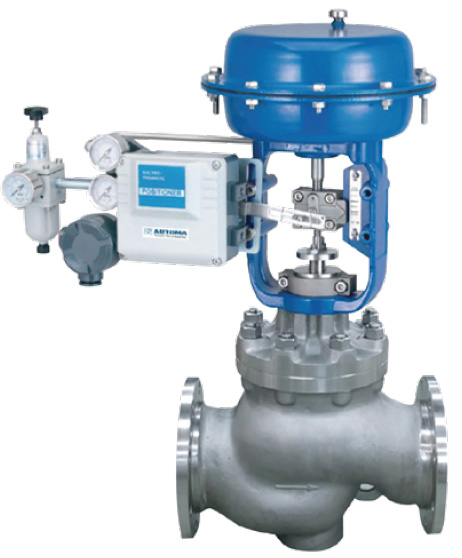

VBC SERIES : 2-WAY CAGE TYPE CONTROL VALVE

  • The valve provides easy maintenance
  • All trim parts can be removed from the top of the valve
  • Lower stem friction for increased stability
  • Balance trim structure
  • Lock nut between bonnet and actuator can make quick disassembly
  • Various Cage Type

Scroll left or right to see the content.

Model VBC
Valve Type 2-way Cage Control (Balanced Type)
Applicable Fluids Water, Oil, Steam, Gas
Temp. Range -5 ~ 200℃, Option -196 ~ 400℃
Design Pressure Max. 120bar
Size 50 ~ 400mm (2" ~ 16")
Flanges JIS, ANSI, DIN, ISO
Material - Body - Ductile Iron, Cast Steel, Cast Bronze, Stainless Steel
- Special Material on request
Flow Characteristics Liner, EQ%, Quick Opening, Lowe Noise
Actuator Pneumatic Diaphragm, Motor Actuator
STANDARD
SOFT SEAT
MULTI HOLE 2 STAGE
MULTI HOLE 3 STAGE
Dimension

Scroll left or right to see the content.

Size mm(inch) L ￠D H Weight (kg) Rated Cv
150# 300# 600# Without Handle With Handle
80 (3") 298 318 337 370 645 906 111 130
100 (4") 352 368 394 370 662 923 124 240
125 (5") 403 425 457 480 805 1076 164 280
150 (6") 451 473 508 480 805 1076 201 340
200 (8") 543 568 610 550 955 1268 285 660

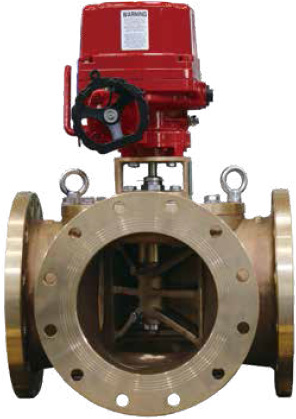

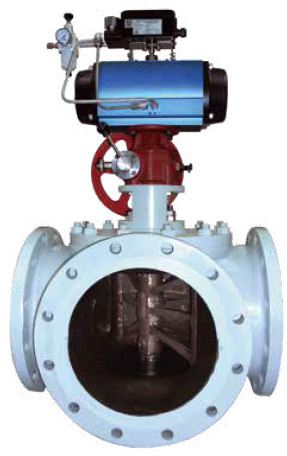

VTR SERIES : 3-WAY ROTARY CONTROL VALVE

  • Compact size and large capacity have a compared with globe valve
  • Easy installation and maintenance
  • More smooth throttling with greater accuracy
  • Mixing or dividing flow configurations are available
  • Fail position can be changed easily
  • Low pressure drop and high capacity structure
Model VBC
Valve Type 3-way Rotary Plug Type
Applicable Fluids Water, Oil, Liquid
Temp. Range 0 ~ 120℃
Design Pressure Max. 10bar
Size 80 ~ 600mm (4"~24")
Flanges JIS, ANSI, DIN, ISO
Material - Body - Ductile Iron, Cast Steel, Stainless Steel
- Special Material on request
Flow Characteristics Linear
Actuator Pneumatic Diaphragm, Motor Actuator
Handle Handwheel with Gear Box

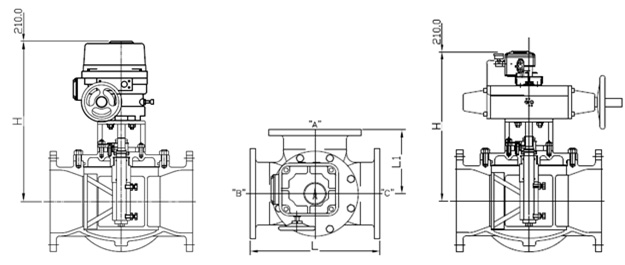

Dimensiom

Scroll left or right to see the content.

Size mm(inch) L LI H Weight (kg) Rated Cv
Motor Pneumatic Motor Pneumatic
80 (3") 280 140 470 430 65 63 280
100 (4") 300 150 480 482 71 69 365
125 (5") 300 150 480 482 75 74 547
150 (6") 370 185 490 490 102 100 848
200 (8") 450 225 520 650 128 125 1510
250 (10") 520 260 550 675 204 199 2355
300 (12") 600 300 560 725 272 263 3398
350 (14") 680 340 600 750 328 339 4622
400 (16") 770 385 700 775 469 476 5987
450 (18") 960 480 750 775 611 619 7663
500 (20") 1024 512 800 850 758 771 9732

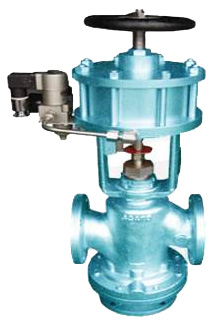

VOG SERIES : GLOBE TYPE SHUT OFF VALVE

  • Simple construction and easy installation.
  • No leakage with soft sealing.
  • Emergency operating is possible with emergency handle devices
  • The valve has large capacity.
Model VOP2 / VOP3
Valve Type 2-way OR 3-way globe Type
Applicable Fluids Water, Oil, Steam, Gas, Liquid
Temp. Range 0 ~ 100℃ / 0 ~ 200℃
Design Pressure Max. 16bar
Size 15 ~ 125mm (1" ~ 5")
Flanges JIS, ANSI, DIN
Leakage Class
  • ANSI Class IV(0.01% of the rated Cv) with standard Seal
  • ANSI Class VI(Bubble Tight) with soft seal(Option)
Material - Body Ductile Iron, Cast Steel, Stainless Steel
Flow Characteristics On / Off
Actuator Pneumatic Cylinder(Single/Double)
Handle Option
Dimension
2-way
3-way

Scroll left or right to see the content.

Size mm(in) H G L Weight (kg) Rated Cv
2-way 3-way 2-way 3-way
15 (1/2") 330 70 120 135 136 26 4
20 (3/4”) 330 70 120 140 140 20 9
25 (1”) 330 91 130 140 150 26 16
32 (1 1/4”) 380 115 155 170 190 20 24
40 (1 1/2”) 380 115 155 170 190 43 37
50 (2”) 430 - 170 - 200 52 65
65 (2 1/2”) 455 - 200 - 230 70 97
80 (3”) 470 - 220 - 260 80 140
100 (4”) 600 - 240 - 300 120 224
125 (5”) 620 - 270 - 370 160 455

VOB SERIES : BALL TYPE SHUT OFF VALVE

  • Simple construction and easy installation.
  • Low leakage(Class IV, V, VI)
  • Emergency operating is possible (Option)
  • Design : API 6D/598, ANSI B V 16.10/16.25/16.34/16.5
Model VOB
Valve Type 2-way Ball Type
Applicable Fluids Water, Oil, Steam, Gas, Liquid
Temp. Range -10 ~ 150 ℃
Operating Pressure 4 ~ 7bar
Size 15 ~ 300mm (½" ~ 12")
Flanges JIS, ANSI, DIN, ISO
Rating ANSI 150(300#, 600#)
Material - Body A216WCB, A351 CF8, 8M
Actuator Pneumatic Cylinder(Single/Double)
Handle Top Mounting

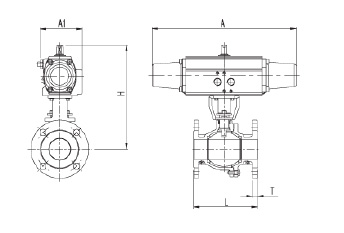

Dimension - Double acting

Scroll left or right to see the content.

Model Size A A1 H (Approx) L
mm inch
VOBD50-15F 15A 1/2" 162 75 188 108
VOBD50-20F 20A 3/4" 162 75 191 117
VOBD50-25F 25A 1" 162 75 200 127
VOBD65-32F 32A 1-1/4" 202 89 220 140
VOBD65-40F 40A 1-1/2" 202 89 242 165
VOBD65-50F 50A 2" 202 89 249 178
VOBD80-65F 65A 2-1/2" 262 101 279 190
VOBD80-80F 80A 3" 262 101 319 203
VOBD100-100F 100A 4" 311 129 357 229
VOBD125-125F 125A 5" 390 151 415 356
VOBD140-150F 150A 6" 431 164 480 394
VOBD160-200F 200A 8" 506 189 589 457
VOBD200-250F 250A 10" 605 231 720 533
Dimensiom - Single acting

Scroll left or right to see the content.

Model Size A A1 H (Approx) L
mm inch
VOBS50-15F 15A 1/2" 257 75 188 108
VOBS50-20F 20A 3/4" 257 75 191 117
VOBS65-25F 25A 1" 314 89 217 127
VOBS65-32F 32A 1-1/4" 314 89 220 140
VOBS65-40F 40A 1-1/2" 314 89 242 165
VOBS80-50F 50A 2" 430 101 268 178
VOBS80-65F 65A 2-1/2" 430 101 279 190
VOBS100-80F 80A 3" 500 129 341 203
VOBS125-100F 100A 4" 606 151 383 229
VOBS140-125F 125A 5" 682 164 433 356
VOBS160-150F 150A 6" 781 189 504 394
VOBS200-200F 200A 8" 982 231 657 457

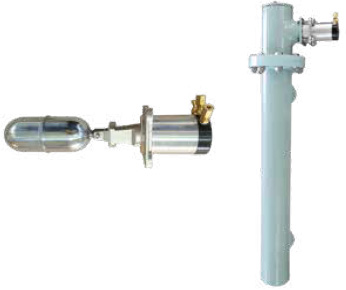

VPLC SERIES : PNEUMATIC LEVEL CONTROLLER

  • Control the in-tank water level mechanically without electricity
  • Converts the supply pressure of 1.4 bar to an output signal of 0.2 to 1 bar
  • Changes the control intensity proportionally to the liquid level
Model VPLC
Nominal Pressure JIS 20K, Max 20 bar up to 250℃
Operating Temperature 1 to 200℃
Ambient Temperature 1 to 70℃
Density of Liquid Min. 0.7 kg/dm3
Nominal Control Range 30mm (-15 ~ +15 mm)
Control Pressure 1.4 bar / 2.4 bar
Output Signal 0.2 ~ 1.0 bar / 0.4 ~ 2.0 bar
Linearity ±5% (of full scale output)
Air Flow 0.5 ~ 6.0 Nl/min (can be increased by using external booster valve)
Air Consumption Max. 0.4 Nm3/h

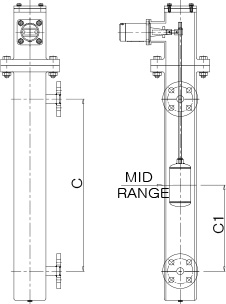

Dimensiom
C MAX. LEVEL RANGE C1 (MID. RANGE) W.T (kg)
270 250 135 20
320 300 160 22
620 600 310 27

VEOC SERIES ENGINE OIL CHANGER

Description

For engine fuel oil changing, VEOC controls the valve's position gradually because of the difference in viscosity or operating temperature of the different fuel oils, setting the time or temperature in consideration of fuel oil characteristic.

Features

  • Controllable during exact time period
  • Operating by manual from remote or local
  • Monitoring for valve changing
  • Monitoring temperature of M/E entrance (option)
  • Alternative choice (option)
    1. Changing by time
    2. Changing by temperature
Specification
Model VEOC-1 VEOC-2 VEOC-3
Characteristic Mechanical Electronic
Electric Power 110/220VAC, 50/60Hz
Setting Hard Easy Easy
Time Control Yes Yes Yes
Temperature Control - - Yes
Control Method On/Off Proportional
Accuracy 90% 99% 99%
Accessories 3-way globe valve with actuator
Air Regulator (for Pneumatic Actuator)
Limit I/P Positioner Included L/S
Temp. Sensor
